Mankind NXS 20'' BMX Stunt Bike

Description

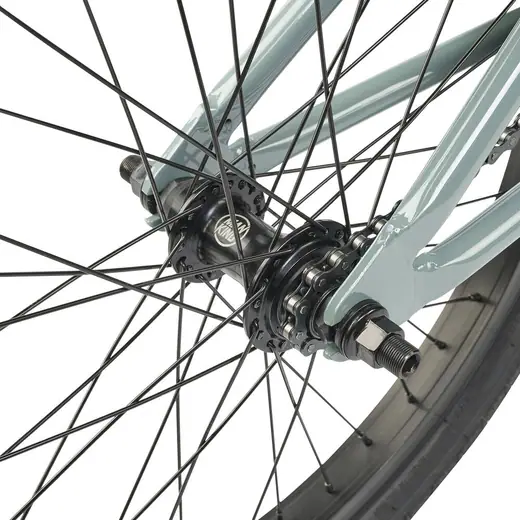

The Mankind NXS 20'' offers excellent performance for BMX enthusiasts aiming to go freestyle in both parks and urban streets. With its crisp and clean-sounding cassette hub, the Mankind freestyle BMX ensures immediate pedal engagement. Built with a Hi-Ten steel frame, it is budget-friendly and ideal for relaxed riding.

Featuring a 3-piece crank, it boasts exceptional durability and simple maintenance, allowing for the easy replacement of any broken parts
Extended crank arms of 165mm and 170mm offer enhanced stability and control

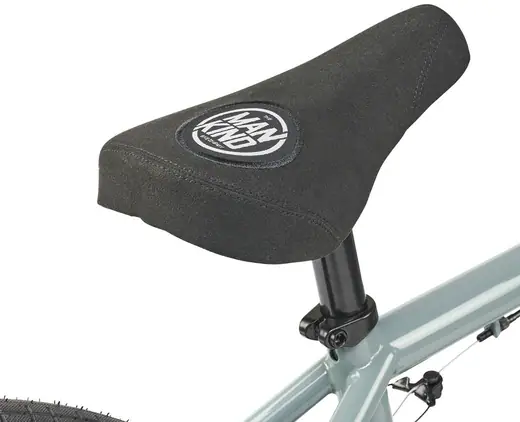

A combo seat design integrates the seat and the seat post for a straightforward, lightweight setup

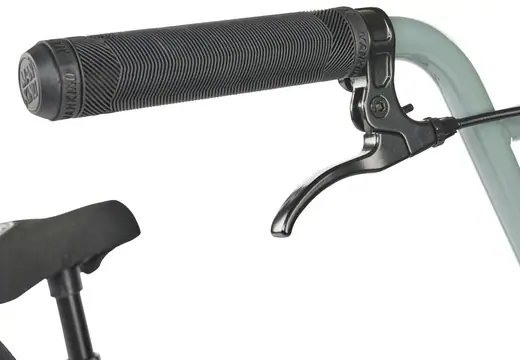

Pre-drilled holes for a gyro brake are included, freeing you from the concerns of wires interfering with your barspins
Includes a U-brake to promote your safety
The handlebar on this bike is designed with a 12° back sweep to reduce wrist strain
Fitted with the traditional 20" wheels

Model specifications

Model	Frame Top Tube	Bar height	Frame standover height	Crank Length/Type
18.5"	18.5"	8.2" 20.8	8" (20.3cm)	165mm, Three-piece
20"	20"	8.5"	8.5" (21.6cm)	170mm, Three-piece
20.5"	20.5"	8.75"	8.5" (21.6cm)	170mm, Three-piece
21"	21"	8.75"	8.5" (21.6cm)	170mm, Three-piece

Specifications

BMX Discipline:

Freestyle BMX

Wheel diameter:

20"

Bar design:

Two-piece

Bar width:

28.5"

Backsweep:

12°

Upsweep:

2°

Hub:

Cassette, Sealed bearings, Unsealed bearings front

Skill Level:

Beginner

Weight:

22lbs

Frame material:

Hi-ten steel

Seat clamp:

Non-integrated

Seat:

Combo

Tire width:

2.3"

Pegs:

Not included

Axle diameter:

0.39" (10mm), 0.55" (14mm)

Wheel offset:

28mm

Stem type/Length:

50mm, Top load

Stem diameter:

22.2mm

Headset type:

Integrated 1 1/8"

Headtube angle:

75°

BMX Brake Included:

Caliper Brake (Front), U-brake (Rear)

Brake Mount Kit:

Included

Gyro compatible:

Yes

Gyro System included:

No

Gear ratio:

25/9

Pedal axle diameter:

9/16"

Sprocket mounting:

8-spline, Bolt Drive

Driver side:

Right

Crank material:

Chromoly Steel

Bottom Bracket:

Mid, Sealed

Crank Axle Diameter:

19mm

Pedal material:

Plastic

Number of spokes:

36

BMX Rim Type:

Single-walled rear rim, Single-walled front rim

Chain type:

Single speed

Assembly:

Partly assembled
